Manufacturing

Laminate and Prepreg

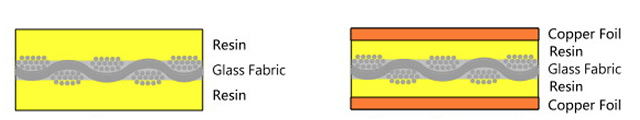

Copper Clad Laminate (also called CCL) and prepreg are key materials for making printed circuit boards. CCL are made of high quality woven E-glass coated with the epoxy resin system, which provides with UV-block characteristic, and compatibility with automated optical inspection (AOI) process. These products are suitable for PCB that needs to survive severe thermal cycles, or to experience excessive assembly process.

Laminate and Prepreg
Prepreg / Copper Clad Laminate
Related Products

Mass Lamination Service

TUC employs cutting edge equipments to offer advanced mass lamination services to global PCB manufactures - from image transfer to automatic build-up to inspection machines. To focus on PCB applications in impedance controlled, HDI and high layer count designs, TUC offers customer not only a total solution combined facility from CCL expertise and PCB interlayer processes, but also production flexibility and cost savings.

Mass Lamination Service
Related Products

Process Overview

Prepreg

Resin Mixing
Resin Mixing
Glass-fabric Loading
Glass-fabric Loading
Treating
Treating
Prepreg Rewinding
Prepreg Rewinding

Copper Clad Laminate

Bonding Sheet Ply-up
Bonding Sheet Ply-up
Build-up
Build-up
Pressing (Lamination)
Pressing (Lamination)
Laminates Break-down
Laminates Break-down

Mass Lamination Service

Inner Layer Pre-treatment
Inner Layer Pre-treatment
Inner Layer D/F Lamination
Inner Layer D/F Lamination
Inner Layer Automatic Exposure
Inner Layer Automatic Exposure
AOI (Automatic Optical Inspection)
AOI (Automatic Optical Inspection)
Black Oxide / Alternative Oxide Line
Black Oxide / Alternative Oxide Line
Ply-up
Ply-up
Build-up
Build-up
Pressing (Lamination)
Pressing (Lamination)
X-ray Target hole Drilling
X-ray Target hole Drilling
CNC Routing and Outline Shearing
CNC Routing and Outline Shearing
Drilling
Drilling
Plating
Plating
